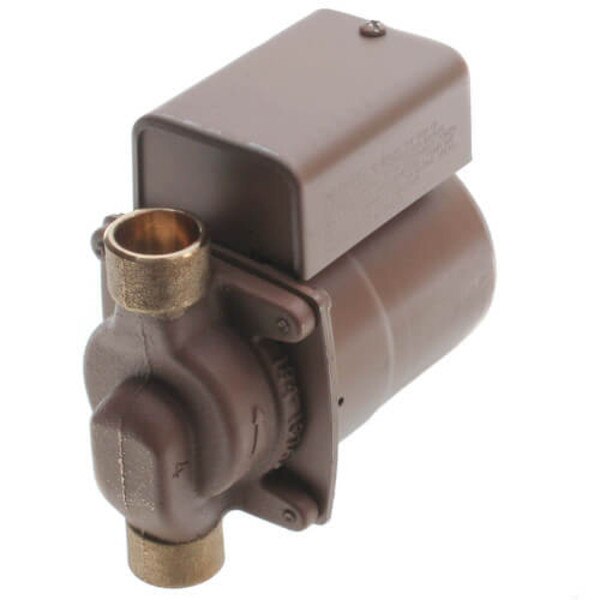

Taco Single Phase Circulating Pump
The TACO 006 is designed for circulating hot or chilled fresh water in open or closed loop applications. Typical uses include hydronic heating, domestic hot water recirculation, hydro-air heating/cooling, heat recovery units, water source heat pumps, drain down open loop solar systems and potable water applications. The unique, replaceable cartridge contains all of the moving parts and allows for easy service instead of replacing the entire circulator. The compact, low power consumption design is ideal for high efficiency jobs.
• Standard high capacity output-compact design.
• Quiet, efficient operation.
• Direct drive-low power consumption.
• Unique replaceable cartridge design-field serviceable.
• Self-lubricating.
• No mechanical seal.
• Reliable.
• Cast Iron, flanged or bronze construction with sweat, threaded or union connections.
• Bronze
• HP: 1/40
• Hertz: 60
• Volts: 115
• RPM: 3250
• 3/4” Sweat
• Less Flanges
• Max head: 9’
• Max flow: 10 gpm
• Max pressure: 125 psi
• Temperature range: 40 - 220 degrees F
Replacement Parts List:
• Casing O-Ring: 007-003RP
• Capacitor or PC board: 007-002RP
• Cartridge assembly complete: 005-020RP
• For California Residents please see Prop 65 Warnings
• Standard high capacity output-compact design.
• Quiet, efficient operation.
• Direct drive-low power consumption.
• Unique replaceable cartridge design-field serviceable.
• Self-lubricating.
• No mechanical seal.
• Reliable.
• Cast Iron, flanged or bronze construction with sweat, threaded or union connections.
• Bronze
• HP: 1/40
• Hertz: 60
• Volts: 115
• RPM: 3250
• 3/4” Sweat
• Less Flanges
• Max head: 9’
• Max flow: 10 gpm
• Max pressure: 125 psi
• Temperature range: 40 - 220 degrees F
Replacement Parts List:
• Casing O-Ring: 007-003RP
• Capacitor or PC board: 007-002RP
• Cartridge assembly complete: 005-020RP
• For California Residents please see Prop 65 Warnings
| Manufacture Item Number | 006-B4 |
| UPC | 687752001594 |
| Weight | 4.42 |
| Package Quantity | EACH |
